Mapflow API

Примечание

Read documentation and see examples also in this Postman collection for API.

См.также

Download and install Mapflow python CLI to query API and run scripts Mapflow CLI Tool.

Авторизация в Mapflow API

Для доступа из внешних приложений, таких как плагин для QGIS, вам необходимо получить API token. Пользователи могут зарегистрироваться и получить токен по адресу https://app.mapflow.ai/account/api. Токен должен быть передан в Basic Auth параметрах, как в примере:

curl --location --request GET 'https://api.mapflow.ai/rest/projects/default' \
--header 'Authorization: Basic <YOUR TOKEN>'

Примечание

Ваш токен генерируется по запросу и состоит из <Email: API Token>

Вы можете декодировать его с помощью декодера base64 для использования в форме Basic Auth

Убедитесь, что вы сохранили токен, в противном случае вам нужно будет его переиздать.

Получение API токена

Откройте веб-приложение Mapflow. Зарегистрируйте новый аккаунт или войдите, используя Google аккаунт.

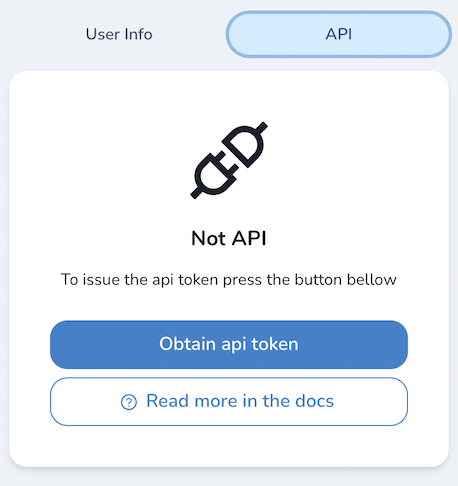

Перейдите в настройки профиля пользователя чтобы сгенерировать новый API токен.

Mapflow Processing API

The Mapflow Processing API enables you to run AI-powered geospatial analysis on satellite and aerial imagery. Use it to detect buildings, roads, forests, and more at scale.

Внимание

Projects and processings created via the API are synchronized with Mapflow.ai. API calls consume your Mapflow credits.

Base URL

https://api.mapflow.ai/rest

Authentication

All API requests require an API token. Generate yours in profile settings.

curl -H "Authorization: Bearer YOUR_API_TOKEN" \
  https://api.mapflow.ai/rest/user/status

See authorization guide for details.

Quick Start

Run your first processing in 3 steps:

Create a project

curl -X POST https://api.mapflow.ai/rest/projects \
  -H "Authorization: Bearer YOUR_TOKEN" \
  -H "Content-Type: application/json" \
  -d '{
    "name": "My First Project",
    "description": "Buildings detection"
  }'

Response: {"id": "project-uuid", ...}

Create and run processing

curl -X POST https://api.mapflow.ai/rest/processings/v2 \
  -H "Authorization: Bearer YOUR_TOKEN" \
  -H "Content-Type: application/json" \
  -d '{
    "name": "Downtown Buildings",
    "projectId": "project-uuid",
    "wdName": "🏠 Buildings",
    "geometry": {
      "type": "Polygon",
      "coordinates": [[
        [37.6156, 55.7558],
        [37.6256, 55.7558],
        [37.6256, 55.7608],
        [37.6156, 55.7608],
        [37.6156, 55.7558]
      ]]
    },
    "params": {
      "sourceParams": {
        "dataProvider": {
          "providerName": "Mapbox",
          "zoom": 18
        }
      }
    }
  }'

Response: {"id": "processing-uuid", "status": "IN_PROGRESS", ...}

Check status and download results

# Check status
curl https://api.mapflow.ai/rest/processings/{processing-uuid}/v2 \
  -H "Authorization: Bearer YOUR_TOKEN"

# Download results (when status = "OK")
curl https://api.mapflow.ai/rest/processings/{processing-uuid}/result \
  -H "Authorization: Bearer YOUR_TOKEN" \
  -o results.geojson

Next steps: Explore available models, upload custom imagery, or review the complete API reference.

Mapflow Data API

The Mapflow Data API enables you to manage custom imagery, organize it into mosaics, and search satellite imagery from external providers. Use your imagery for AI-powered analysis with the Processing API.

Примечание

Try our Postman Collection for interactive API testing.

Base URL

https://api.mapflow.ai/rest

Authentication

All API requests require an API token. Generate yours in profile settings.

curl -H "Authorization: Bearer YOUR_API_TOKEN" \
  https://api.mapflow.ai/rest/rasters/memory

See authorization guide for details.

Quick Start

Upload and process your imagery in 3 steps:

Create a mosaic

curl -X POST https://api.mapflow.ai/rest/rasters/mosaic \
  -H "Authorization: Bearer YOUR_TOKEN" \
  -H "Content-Type: application/json" \
  -d '{"name": "My Aerial Survey", "tags": ["survey-2024"]}'

Response: {"id": "mosaic-uuid", ...}

Upload images to mosaic

curl -X POST https://api.mapflow.ai/rest/rasters/mosaic/{mosaic-uuid}/image \
  -H "Authorization: Bearer YOUR_TOKEN" \
  -H "Content-Type: multipart/form-data" \
  -F "file=@/path/to/orthophoto.tif"

Response: {"id": "image-uuid", ...}

Run processing with uploaded imagery

curl -X POST https://api.mapflow.ai/rest/processings/v2 \
  -H "Authorization: Bearer YOUR_TOKEN" \
  -H "Content-Type: application/json" \
  -d '{
    "name": "Building Detection",
    "projectId": "project-uuid",
    "wdName": "🏠 Buildings",
    "geometry": {...},
    "params": {
      "sourceParams": {
        "myImagery": {"mosaicId": "mosaic-uuid"}
      }
    }
  }'

Next steps: Explore satellite imagery search, manage storage limits, or review the complete API reference.

For complete API reference documentation including all endpoints, parameters, and examples, see API Reference.

API Reference

Проекты

Создать проект

POST /projects

Creates a new project container for organizing processings.

Parameter	Тип	Required	Описание
`name`	string	Yes	Project name
`description`	string	No	Project description

Example Request

{
  "name": "Urban Analysis 2026",
  "description": "Building footprints for city planning"
}

Example Response

{
  "id": "546d148f-19a1-40d8-8f16-d1e6dabfd204",
  "name": "Urban Analysis 2026",
  "description": "Building footprints for city planning"
}

Update project

PUT /projects/{projectId}

Updates project name and/or description.

Parameter	Тип	Required	Описание
`projectId`	string	Yes	Project UUID (path parameter)
`name`	string	No	New project name
`description`	string	No	New project description

Example Request

{
  "name": "Urban Analysis 2026 - Updated",
  "description": "Building and road detection"
}

Обработка

Примечание

v2 API is recommended. It uses structured sourceParams and inferenceParams. v1 uses a flat params map and is maintained for backward compatibility.

Create processing (v2)

POST /processings/v2

Creates and runs an imagery analysis processing.

Parameter	Тип	Required	Описание
`name`	string	Yes	Processing name
`projectId`	string	Yes	Project UUID
`wdId` or `wdName`	string	Yes	Workflow definition ID or name (e.g., «🏠 Buildings»)
`geometry`	GeoJSON	Yes	Area of interest (Polygon or MultiPolygon)
`params.sourceParams`	object	Yes	Imagery source configuration (see Data Sources)
`params.inferenceParams`	object	No	Model-specific parameters
`blocks`	array	No	Enable/disable workflow steps (see Workflow Blocks)
`description`	string	No	Processing description
`meta`	object	No	Custom metadata

Example Request: Using Mapbox

{
  "name": "Downtown Buildings",
  "projectId": "546d148f-19a1-40d8-8f16-d1e6dabfd204",
  "wdName": "🏠 Buildings",
  "geometry": {
    "type": "Polygon",
    "coordinates": [[[37.615, 55.755], [37.625, 55.755],
                     [37.625, 55.760], [37.615, 55.760],
                     [37.615, 55.755]]]
  },
  "params": {
    "sourceParams": {
      "dataProvider": {
        "providerName": "Mapbox",
        "zoom": 18
      }
    }
  }
}

Example Request: Using Custom Imagery

{
  "name": "Aerial Survey 2026",
  "projectId": "546d148f-19a1-40d8-8f16-d1e6dabfd204",
  "wdName": "🏠 Buildings",
  "geometry": {"type": "Polygon", "coordinates": [...]},
  "params": {
    "sourceParams": {
      "myImagery": {
        "imageIds": ["0c26a0d3-96d8-4ed5-aa62-3843d1d7905c"]
      }
    }
  }
}

Example Response

{
  "id": "3fa85f64-5717-4562-b3fc-2c963f66afa6",
  "name": "Downtown Buildings",
  "status": "IN_PROGRESS",
  "percentCompleted": 0,
  "cost": 150,
  "created": "2026-02-10T10:30:00Z"
}

Get processing (v2)

GET /processings/{processingId}/v2

Retrieves processing status and details.

Parameter	Тип	Required	Описание
`processingId`	string	Yes	Processing UUID (path parameter)

Example Response

{
  "id": "3fa85f64-5717-4562-b3fc-2c963f66afa6",
  "name": "Downtown Buildings",
  "status": "OK",
  "percentCompleted": 100,
  "area": 1200000,
  "cost": 150,
  "vectorLayer": {
    "id": "layer-uuid",
    "tileUrl": "https://app.mapflow.ai/api/layers/{z}/{x}/{y}.pbf"
  },
  "created": "2026-02-10T10:30:00Z",
  "updated": "2026-02-10T10:45:00Z"
}

Status values: UNPROCESSED, IN_PROGRESS, AWAITING, OK, FAILED, CANCELLED

List processings (v2)

GET /processings/v2

Lists all user processings.

Example Response

[
  {
    "id": "uuid-1",
    "name": "Processing 1",
    "projectId": "project-uuid",
    "status": "OK",
    "percentCompleted": 100
  },
  {
    "id": "uuid-2",
    "name": "Processing 2",
    "status": "IN_PROGRESS",
    "percentCompleted": 45
  }
]

List processings by project (v2)

GET /projects/{projectId}/processings/v2

Lists processings for a specific project.

Calculate cost (v2)

POST /processing/cost/v2

Estimates processing cost before running.

Parameter	Тип	Required	Описание
`wdId`	string	Yes	Workflow definition ID
`geometry`	GeoJSON	No*	Area of interest
`areaSqKm`	number	No*	Area in km² (alternative to geometry)
`params`	object	No	Source and inference parameters
`blocks`	array	No	Enabled workflow blocks

Примечание

*Provide either geometry or areaSqKm (or both).

Example Request

{
  "wdId": "8cb13006-a299-4df6-b47d-91bd63de947f",
  "areaSqKm": 1.5,
  "params": {
    "sourceParams": {
      "dataProvider": {"providerName": "Mapbox"}
    }
  }
}

Example Response

Download results

GET /processings/{processingId}/result

Downloads processing results as GeoJSON.

Query Parameters:

aoiId (optional) — Filter results to specific AOI

Example

curl https://api.mapflow.ai/rest/processings/{id}/result \
  -H "Authorization: Bearer YOUR_TOKEN" \
  -o results.geojson

Processing management

Restart processing

POST /processings/{processingId}/restart

Restarts failed partitions only.

Update processing

PUT /processings/{processingId}

{
  "name": "New name",
  "description": "Updated description",
  "projectId": "new-project-uuid"
}

Delete processing

DELETE /processings/{processingId}

Deletes processing and all child entities.

User & Account

Get user status

GET /user/status

Returns account details, available models, and workflow definitions.

Example Response

{
  "user": {
    "id": "user-uuid",
    "email": "user@example.com",
    "credits": 5000
  },
  "models": [
    {
      "id": "model-uuid",
      "name": "🏠 Buildings",
      "pricePerSqKm": 15.0,
      "blocks": [...]
    }
  ]
}

Processing history

POST /processings/stats

Returns processing history with pagination and filtering.

Query Parameters:

type (optional) — Response format: JSON or CSV

Request Body:

Parameter	Тип	Описание
`page`	integer	Page number
`perPage`	integer	Items per page
`sort`	string	Sort expression (e.g., `"created:desc"`)
`filter`	string	Filter expression (e.g., `"status=OK"`)

Example Request

{
  "page": 1,
  "perPage": 50,
  "sort": "created:desc",
  "filter": "status=OK"
}

Data Sources

The sourceParams object specifies where to get imagery. Choose one option:

Default Data Provider

Use built-in providers like Mapbox, ArcGIS.

{
  "sourceParams": {
    "dataProvider": {
      "providerName": "Mapbox",
      "zoom": 18
    }
  }
}

Field	Описание
`providerName`	Provider name: `Mapbox`, `arcgis_world_imagery`, etc.
`zoom`	Zoom level (typically 17-19 for 0.5m resolution)

My Imagery

Use imagery uploaded via Mapflow Data API.

Single image:

{
  "sourceParams": {
    "myImagery": {
      "imageIds": ["image-uuid"]
    }
  }
}

Mosaic (multiple images):

{
  "sourceParams": {
    "myImagery": {
      "imageIds": ["img1-uuid", "img2-uuid"],
      "mosaicId": "mosaic-uuid"
    }
  }
}

Imagery Search

Search and use imagery from commercial providers.

{
  "sourceParams": {
    "imagerySearch": {
      "dataProvider": "maxar",
      "imageIds": ["image-uuid"],
      "zoom": 18
    }
  }
}

Custom URL

Use your own XYZ/TMS/WMS tile service.

{
  "sourceParams": {
    "userDefined": {
      "sourceType": "XYZ",
      "url": "https://tiles.example.com/{z}/{x}/{y}.png",
      "zoom": 18,
      "crs": "EPSG:3857",
      "rasterLogin": "username",
      "rasterPassword": "password"
    }
  }
}

Field	Тип	Описание
`sourceType`	string	`XYZ`, `TMS`, `QUADKEY`, `SENTINEL_L2A`, `LOCAL`
`url`	string	Tile URL template
`zoom`	integer	Уровень zoom
`crs`	string	Coordinate reference system (e.g., `EPSG:3857`)
`rasterLogin`	string	Optional authentication username
`rasterPassword`	string	Optional authentication password

Uploading Custom Imagery

Use Mapflow Data API to create a mosaic and upload images
Reference uploaded images in sourceParams.myImagery.imageIds

{
  "params": {
    "sourceParams": {
      "myImagery": {
        "imageIds": ["uploaded-image-uuid"]
      }
    }
  }
}

Data API

Mosaics

A mosaic is a collection of georeferenced images organized for processing and preview. Mosaics help when working with multiple aerial images covering an area or batching large orthomaps for optimized cloud storage.

Create Mosaic

POST /rasters/mosaic

Creates an empty mosaic collection.

Request Body

Parameter	Тип	Required	Описание
`name`	string	Yes	Mosaic name
`tags`	array	No	Tags for organizing mosaics

Example Request

curl -X POST https://api.mapflow.ai/rest/rasters/mosaic \
  -H "Authorization: Bearer YOUR_TOKEN" \
  -H "Content-Type: application/json" \
  -d '{
    "name": "Aerial Survey 2024",
    "tags": ["agriculture", "spring"]
  }'

Response

{
  "id": "6ee95ae6-f26e-41bd-8cb1-39bea545119f",
  "name": "Aerial Survey 2024",
  "tags": ["agriculture", "spring"],
  "created_at": "2024-03-15T10:30:00Z"
}

Get Mosaic

GET /rasters/mosaic/{mosaic_id}

Retrieves mosaic metadata by ID.

Response

{
  "id": "6ee95ae6-f26e-41bd-8cb1-39bea545119f",
  "name": "Aerial Survey 2024",
  "tags": ["agriculture", "spring"],
  "created_at": "2024-03-15T10:30:00Z",
  "image_count": 15
}

Update Mosaic

PUT /rasters/mosaic/{mosaic_id}

Updates mosaic name and tags.

Request Body

Parameter	Тип	Required	Описание
`name`	string	No	New mosaic name
`tags`	array	No	New tag list (replaces existing)

Example Request

curl -X PUT https://api.mapflow.ai/rest/rasters/mosaic/{mosaic_id} \
  -H "Authorization: Bearer YOUR_TOKEN" \
  -H "Content-Type: application/json" \
  -d '{
    "name": "Updated Survey Name",
    "tags": ["agriculture", "summer"]
  }'

Upload Images to Mosaic

POST /rasters/mosaic/{mosaic_id}/image

Uploads georeferenced image files to an existing mosaic.

Внимание

All images in a mosaic must have:

Same coordinate reference system (CRS)
Same number of bands
Same spatial resolution

Request

Content-Type: multipart/form-data
Body: file field with image file

Example Request

curl -X POST https://api.mapflow.ai/rest/rasters/mosaic/{mosaic_id}/image \
  -H "Authorization: Bearer YOUR_TOKEN" \
  -H "Content-Type: multipart/form-data" \
  -F "file=@/path/to/orthophoto.tif"

Response

{
  "id": "6ae7f9e9-da2d-41e0-b16f-83396003af57",
  "mosaic_id": "6ee95ae6-f26e-41bd-8cb1-39bea545119f",
  "filename": "orthophoto.tif",
  "file_size": 68417439,
  "uploaded_at": "2024-03-15T10:35:00Z"
}

Create Mosaic and Upload Image

POST /rasters/mosaic/image?name={name}&tags={tag1}&tags={tag2}

Creates a mosaic and uploads an image in a single request.

Example Request

curl -X POST 'https://api.mapflow.ai/rest/rasters/mosaic/image?name=QuickSurvey&tags=test' \
  -H "Authorization: Bearer YOUR_TOKEN" \
  -H "Content-Type: multipart/form-data" \
  -F "file=@/path/to/image.tif"

Link External Image to Mosaic

POST /rasters/mosaic/{mosaic_id}/link-image

Links an existing S3 image URL to a mosaic without uploading.

Request Body

Parameter	Тип	Required	Описание
`url`	string	Yes	S3 URL of the image file

Example Request

curl -X POST https://api.mapflow.ai/rest/rasters/mosaic/{mosaic_id}/link-image \
  -H "Authorization: Bearer YOUR_TOKEN" \
  -H "Content-Type: application/json" \
  -d '{
    "url": "s3://bucket/path/image.tif"
  }'

Response

{
  "message": "File successfully linked to a mosaic",
  "mosaic_id": "6ee95ae6-f26e-41bd-8cb1-39bea545119f"
}

Get Images in Mosaic

GET /rasters/mosaic/{mosaic_id}/image

Lists all images in a mosaic with metadata.

Response

[
  {
    "id": "6ae7f9e9-da2d-41e0-b16f-83396003af57",
    "filename": "area-1101712.tif",
    "file_size": 68417439,
    "uploaded_at": "2024-03-15T10:35:00Z",
    "footprint": "POLYGON((1.9915 48.7643, ...))",
    "preview_url_s": "https://api.mapflow.ai/rest/rasters/image/{id}/preview/s",
    "preview_url_l": "https://api.mapflow.ai/rest/rasters/image/{id}/preview/l",
    "meta_data": {
      "crs": "EPSG:32631",
      "width": 5589,
      "height": 4079,
      "count": 3,
      "pixel_size": [0.3, 0.3]
    }
  }
]

Delete Mosaic

DELETE /rasters/mosaic/{mosaic_id}

Deletes a mosaic and all its linked images.

Предупреждение

This action is irreversible. All images linked to the mosaic will be permanently deleted.

Example Request

curl -X DELETE https://api.mapflow.ai/rest/rasters/mosaic/{mosaic_id} \
  -H "Authorization: Bearer YOUR_TOKEN"

Images

Manage individual image files and metadata.

Get Image Metadata

GET /rasters/image/{image_id}

Retrieves detailed metadata for a specific image.

Response

{
  "id": "6ae7f9e9-da2d-41e0-b16f-83396003af57",
  "filename": "orthophoto.tif",
  "file_size": 68417439,
  "uploaded_at": "2024-03-15T10:35:00Z",
  "footprint": "POLYGON((...))",
  "meta_data": {
    "crs": "EPSG:32631",
    "width": 5589,
    "height": 4079,
    "count": 3,
    "dtypes": ["uint8", "uint8", "uint8"],
    "pixel_size": [0.3, 0.3]
  },
  "cog_link": "s3://bucket/path/cog/image.tif"
}

Update Image Name

PUT /rasters/image/{image_id}?name={new_name}

Updates the display name of an image.

Example Request

curl -X PUT 'https://api.mapflow.ai/rest/rasters/image/{image_id}?name=Updated%20Name' \
  -H "Authorization: Bearer YOUR_TOKEN"

Delete Image

DELETE /rasters/image/{image_id}

Deletes an image from storage.

Example Request

curl -X DELETE https://api.mapflow.ai/rest/rasters/image/{image_id} \
  -H "Authorization: Bearer YOUR_TOKEN"

Get Image Preview

GET /rasters/image/{image_id}/preview/{size}

Retrieves a preview thumbnail of the image.

Path Parameters

Size	Описание
`s`	Small preview (256×256 pixels)
`l`	Large preview (1024×1024 pixels)

Example Request

curl https://api.mapflow.ai/rest/rasters/image/{image_id}/preview/s \
  -H "Authorization: Bearer YOUR_TOKEN" \
  -o preview.jpg

Response

Returns JPEG image data.

Storage

Get Storage Usage

GET /rasters/memory

Returns current storage usage and limits for your account.

Example Request

curl https://api.mapflow.ai/rest/rasters/memory \
  -H "Authorization: Bearer YOUR_TOKEN"

Response

{
  "used_bytes": 5368709120,
  "limit_bytes": 10737418240,
  "used_gb": 5.0,
  "limit_gb": 10.0,
  "usage_percent": 50.0
}

Imagery Catalog

Примечание

The Imagery Search API connects you to external satellite imagery providers. Search results depend on providers linked to your account. Contact support to add provider access.

Search Available Imagery

POST /catalog/meta

Searches satellite imagery from external providers by area and metadata filters.

Request Body

Parameter	Тип	Required	Описание
`aoi`	object	Yes	GeoJSON Polygon or MultiPolygon
`acquisitionDateFrom`	string	No	UTC datetime (ISO 8601)
`acquisitionDateTo`	string	No	UTC datetime (ISO 8601)
`minResolution`	float	No	Minimum resolution (meters/pixel)
`maxResolution`	float	No	Maximum resolution (meters/pixel)
`maxCloudCover`	float	No	Maximum cloud cover (0.0-100)
`minOffNadirAngle`	float	No	Minimum off-nadir angle (degrees)
`maxOffNadirAngle`	float	No	Maximum off-nadir angle (degrees)
`minAoiIntersectionPercent`	float	No	Minimum AOI overlap (0.0-100)
`limit`	integer	No	Max results (default: 100)
`offset`	integer	No	Pagination offset
`sortBy`	string	No	Sort field (e.g., `ACQUISITION_DATE`)
`sortOrder`	string	No	`ASC` or `DESC`
`hideUnavailable`	boolean	No	Exclude unavailable products
`dataProviders`	array	No	Filter by provider «name»
`productTypes`	array	No	Filter by product types `["IMAGE" and/or "MOSAIC"]`

Предупреждение

Search area size is limited by your account’s AOI limit.

Example Request

curl -X POST https://api.mapflow.ai/rest/catalog/meta \
  -H "Authorization: Bearer YOUR_TOKEN" \
  -H "Content-Type: application/json" \
  -d '{
    "aoi": {
      "type": "Polygon",
      "coordinates": [[[76.6755,43.2234],[76.6755,43.4712],
                       [77.0163,43.4712],[77.0163,43.2234],
                       [76.6755,43.2234]]]
    },
    "acquisitionDateFrom": "2024-01-01T00:00:00Z",
    "acquisitionDateTo": "2024-03-01T00:00:00Z",
    "maxCloudCover": 10.0,
    "maxResolution": 0.5,
    "limit": 10,
    "sortBy": "ACQUISITION_DATE",
    "sortOrder": "DESC"
  }'

Response – Scene Product

[
  {
    "id": "JL1GF03A_PMS_20220607132729_200087596_103_0002_001_L1",
    "productType": "Scene",
    "acquisitionDate": "2022-06-07T13:27:33Z",
    "sensor": "JL1GF03A",
    "pixelResolution": 1.06,
    "cloudCover": 0.09,
    "offNadirAngle": -3.91,
    "colorBandOrder": "B,G,R,NIR,PAN",
    "providerName": "CG",
    "previewType": "png",
    "previewUrl": "https://example.com/preview.jpg",
    "footprint": {
      "type": "Polygon",
     "coordinates": [[[76.5009, 43.3412]]]
    }
  }
]

Response – Mosaic Product

[
  {
    "id": "JL1KF01A_PMS04_20220717131252_200093089_101_0005_001_L1",
    "productType": "Mosaic",
    "acquisitionDate": "2022-07-17T00:00:00Z",
    "sensor": "JL1KF01A",
    "pixelResolution": 0.0,
    "cloudCover": 0.0,
    "offNadirAngle": 3.0,
    "colorBandOrder": "RGB",
    "providerName": "CG_mosaic_2022",
    "previewType": "xyz",
    "previewUrl": "https://app.mapflow.ai/tiles/provider/{z}/{x}/{-y}.png",
    "footprint": {
      "type": "MultiPolygon",
     "coordinates": [[[[76.9037, 43.2529]]]]
    }
  }
]

Use Search Results in Processing

To run processing with imagery from search results, use the imagerySearch source parameter:

{
  "params": {
    "sourceParams": {
      "imagerySearch": {
        "dataProvider": "CG_mosaic_2022",
        "imageIds": ["JL1KF01A_PMS04_20220717131252_200093089_101_0005_001_L1"]
      }
    }
  }
}

See Processing API for complete processing workflow.

Product Types

Тип	Описание
Scene	Single satellite capture. Available for ordering by request. Contact support to order specific scenes.
Mosaic	Pre-processed imagery mosaic. Available for instant processing if provider is linked to your account.

Preview Sizes

Size Code	Dimensions
`s`	256×256 pixels
`l`	1024×1024 pixels

Workflow Blocks

Customize processing by enabling/disabling optional workflow steps.

{
  "blocks": [
    {"name": "Simplification", "enabled": false},
    {"name": "Classification", "enabled": true}
  ]
}

Available blocks vary by model. Retrieve options via GET /user/status.

AI Models

Model	Описание	Resolution	Zoom	Optional Blocks
🏠 Здания	Building footprints with classification	0.5 m/px	17-18	Simplification, Classification, OSM
🏠 Buildings (Aerial)	High-resolution aerial imagery (10 cm/px)	0.1 m/px	19-20	Simplification
🌲 Лес	Tree cover detection	0.5 m/px	17-18	Высоты
🚗 Дороги	Road network extraction	0.5 m/px	17-18	—
🏗️ Строительство	Construction site detection	0.5 m/px	17-18	—

See model descriptions for detailed requirements.

Status Codes

Status	Описание
`UNPROCESSED`	Processing created but not started
`IN_PROGRESS`	Processing is running
`AWAITING`	Awaiting imagery from provider
`OK`	Processing completed successfully
`FAILED`	Processing failed (check `messages` field)
`CANCELLED`	Processing was cancelled by user
`REFUNDED`	Credits refunded by administrator

Review Status

Review Status	Описание
`ACCEPTED`	Results accepted
`NOT_ACCEPTED`	Results rejected
`REFUNDED`	Credits refunded
`IN_REVIEW`	Under review by team

Error Messages

For detailed error codes and troubleshooting, see Error Messages.

Common errors:

source-validator.PixelSizeTooHigh — Imagery resolution too low (max 1.2 m/px)
source-validator.NoDataInAOI — No imagery available for AOI
geometry.Invalid — Invalid GeoJSON geometry

Best Practices

Check cost before running — Use /processing/cost/v2 to estimate credits
Poll status efficiently — Check status every 30-60 seconds for IN_PROGRESS processings
Handle errors gracefully — Check messages field in failed processings
Use appropriate zoom levels — Match zoom to model requirements (typically 17-18)
Validate geometry — Ensure GeoJSON is valid and not too large (< 100 km²)
Organize with projects — Group related processings in projects
Store processing IDs — Save IDs for later result retrieval

Support

Rate Limits

No strict rate limits currently
Concurrent processings limited by account tier
Contact support for high-volume use cases

Mapflow API

Авторизация в Mapflow API

Получение API токена

Mapflow Processing API

Base URL

Authentication

Quick Start

Mapflow Data API

Base URL

Authentication

Quick Start

API Reference

Проекты

Создать проект

Update project

Обработка

Create processing (v2)

Get processing (v2)

List processings (v2)

List processings by project (v2)

Calculate cost (v2)

Download results

Processing management

User & Account

Get user status

Processing history

Data Sources

Default Data Provider

My Imagery

Imagery Search

Custom URL

Uploading Custom Imagery

Data API

Mosaics

Create Mosaic

Get Mosaic

Update Mosaic

Upload Images to Mosaic

Create Mosaic and Upload Image

Link External Image to Mosaic

Get Images in Mosaic

Delete Mosaic

Images

Get Image Metadata

Update Image Name

Delete Image

Get Image Preview

Storage

Get Storage Usage

Imagery Catalog

Search Available Imagery

Use Search Results in Processing

Product Types

Preview Sizes

Workflow Blocks

AI Models

Status Codes

Review Status

Error Messages

Best Practices

Support

Rate Limits

Get Help
